ULTRA PACK
Explore our solution designed and optimised for industrial-scale production
MS machine
Industrial pre-wiring machine for threading electrical wires and cutting to length, labelling and coiling wired electrical or hydraulic sheaths while cutting them to length.
Included in the installation pack :
Hose reel
Fitted with a braking system connected to and controlled by the machine, the ICTA sheath reel ensures optimum, controlled unwinding in the pre-wiring machine, facilitating unwinding operations.
Included in the installation pack :
Wire dispenser
The reel is the ideal tool for unwinding all your spools of thread!
Included in the installation pack :
Wire sorter
The MECASPIN wire sorter automatically selects the wires and cables to be sheathed from the pre-wiring machine.
Included in the installation pack :
Reel trolley
The Mecaspin AF003 range of reel unwinders comprises a series of reel unwinders in several different sizes.
Included in the installation pack :
Trolley
Optimum storage for your ducts. Better organisation of the workshop and your workspace.
Included in the installation pack :
Sleeve for ducting
To guide and orientate the various sheaths from the reels to the spinning machine.
Included in the installation pack :
SHEATH BANDING MACHINE
To tie a sheath and hold it in position before fitting it to a junction box
BRAKE DISTRIBUTOR
Adapts the braking of hose reels. Prevents accidental unwinding due to inertia.
Included in the installation pack :
INCLUDED IN THE ULTRA PACK
Produce your pre-wired ducts to industrial standards
Sheath pre-wiring MS04
- AUTOMATION 100%
- CADENCE 100%
- Modularity 100%
Wire management equipment
Unwinding gantry
Equipment to store your wires in an organized and simple way. The gantry reel adapts to your workshop and allows you to set up your workshop in the best possible way. This installation also optimizes your time by saving you the time of tidying up wires. Read more

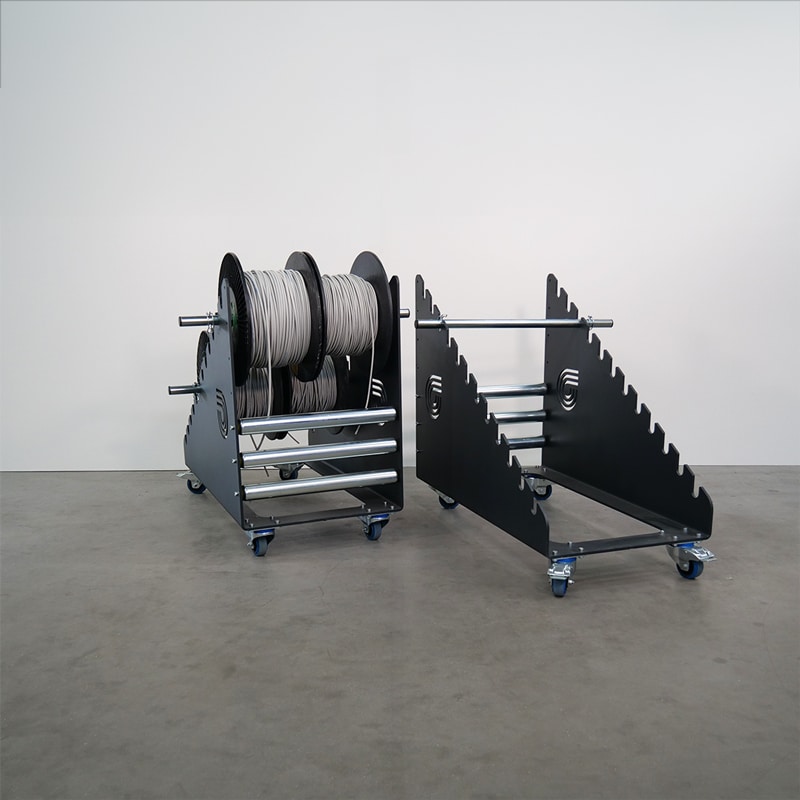

Reel unwinder trolley
The Mecaspin range of reel unwinders comprises a series of reel unwinders in several different sizes. The reel unwinders are laser-cut from 8mm thick sheet metal, deliberately oversized to support all types of loads and reels. They can be mounted on castors or fixed directly to the floor.
Wire management displays
The main purpose of the grommet is to separate and level electrical wires before they enter the wiring system. It helps to organise and reduce wire handling operations. The wire holder also allows you to place the wires at the height of your operator to avoid RSI. Finally, it contributes to optimized thread unwinding and prevents threads from tangling. Read more

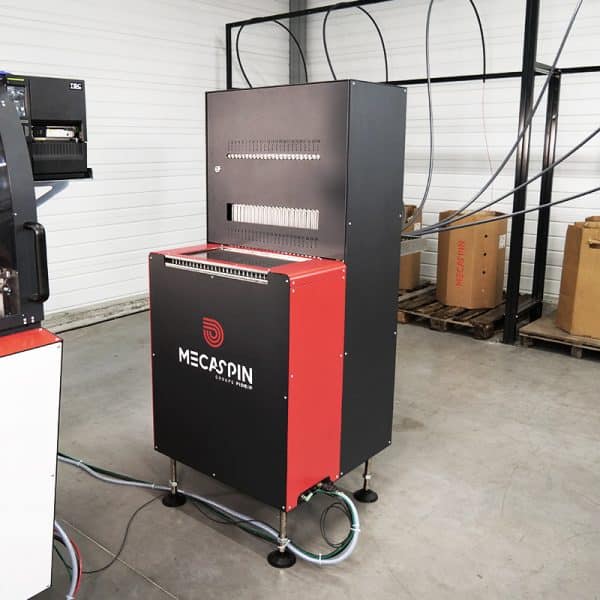

Wire sorter
The wire sorter enables fast, reliable and precise automatic selection of the wires and cables to be spun from the pre-wiring machine. This equipment is compatible with wire reels and box-type systems. It allows the selection of 24 different wire types without error, for easy and efficient use. Read more
Duct management equipment

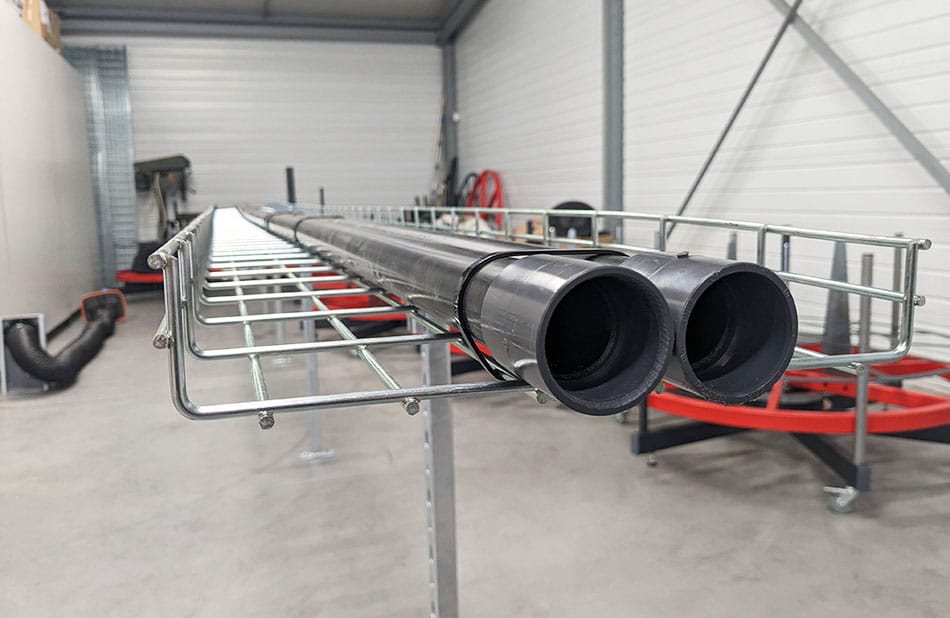

Duct sleeves
The sheath sleeve is a piece of equipment that guides and orients the various sheaths from the reels to the spinning machine, for optimum use. They can be installed under tables or behind shelves, depending on the configuration of your workshop.

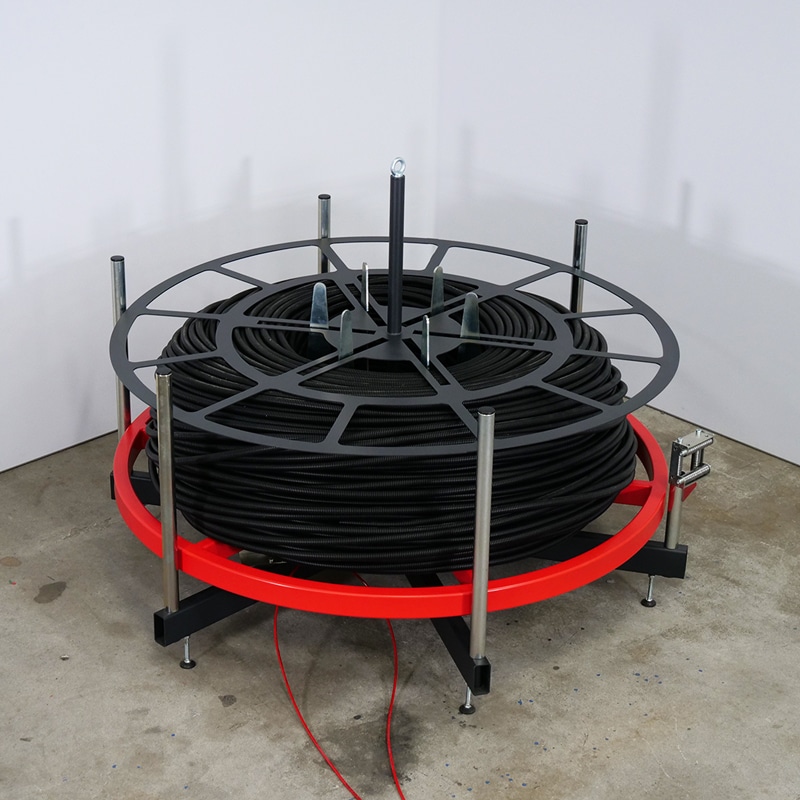

Hose reels
The Mecaspin liner dispenser ensures optimum unrolling of liners in the pre-wiring machine. It makes all unwinding operations easier and prevents unwinding accidents. Changing the spool is quick and easy. Braking is by means of a jack and strap, for equipment that lasts over time.

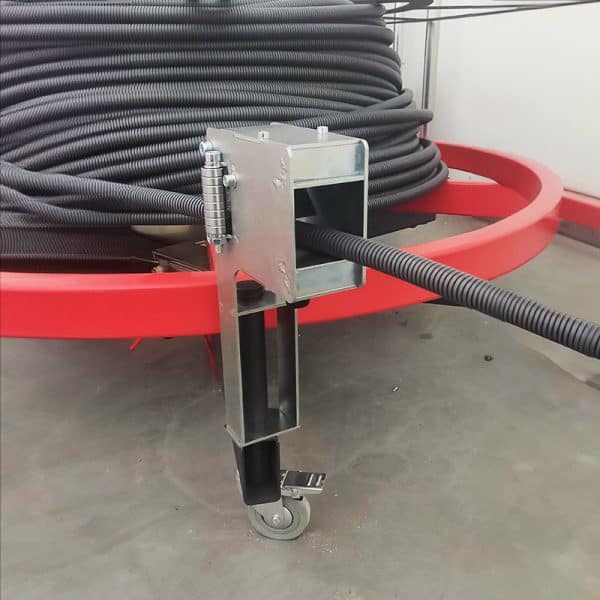

End of coil detector
The end-of-reel detection system is fitted to sheath reels to detect the end of the reel. Once the information has been transmitted to the machine, the spinning stops, which saves material. The savings can be as much as one spun sheath for each reel of sheath used. Read more
Inclued | |||
Automatic duct cutter |
|
|
|
Label editing |
|
|
|
Measuring lengths |
|
|
|
Wire propulsion |
|
|
|
Controlled braking of reels |
|
|
|
Anti-clogging detection |
|
|
|
Electric box unwinding system |
|
|
|
Duct track |
|
|
|
Automatic wire cutter |
|
|
|
Reading production files |
|
|
|
Storage of ducts on trolleys |
|
|
|
Automatic nozzle change |
|
|
|
Sheath tying system |
|
|
|
Automatic wire selection |
|
|
|
Automatic duct selection |
|
|
|
Automatic label application |
|
|
|
Box assembly equipment |
|
|
|
Storage of finished products |
|
|
|
Packaging of finished products |
|
|
|
Let's configure your pack together
Do you have specific needs?
We can help you configure your installation to meet your production objectives.
CUSTOMER CASE STUDY
Take a look behind the scenes of a Mecaspin turnkey installation

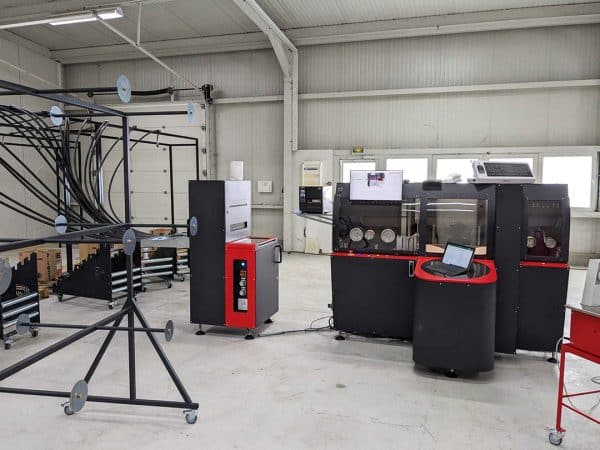

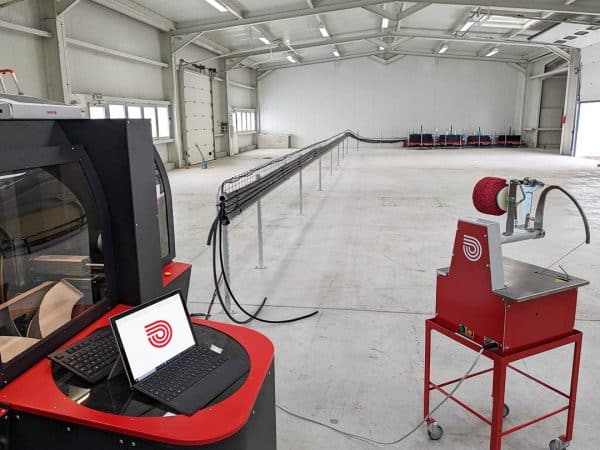

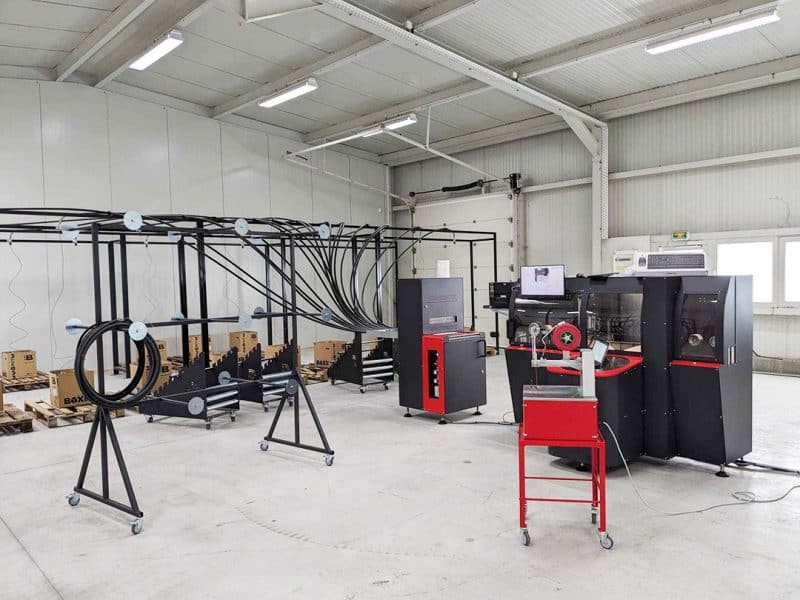

Presentation of an ULTRA installation
At Mecaspin, we have recently developed a robust and ergonomic turnkey installation, the Ultra pack, specifically designed for large industrial structures. This package, perfectly adapted to the unique requirements of our customers, includes the MS04 (our automatic and modular sheath prefeeder) as well as a complete range of equipment such as the unwinding gantry, the reel unwinding trolley, the wire pass display, the wire sorter, the sheath pass duct, the sheath unwinder and the reel end detector. Mecaspin’s expertise was evident in the efficiency and speed of installation, taking into account our customer’s specific space constraints. It’s a concrete illustration of our ability to create tailor-made solutions that optimise the working environment. With the aim of improving working conditions, Mecaspin is committed to developing tailor-made solutions. Our flexibility means we can adapt to the size and specific characteristics of each company. Mecaspin continues to offer customised solutions for a variety of companies. Our unwavering commitment to excellence and proven expertise make us the partner of choice for any company looking for a turnkey installation, such as our Pack Ultra, specially designed for fully automated production of pre-wired ducts at ultra-high output.
