Wire sorter
The MECASPIN wire sorter automatically selects the wires and cables to be spun from the pre-wiring machine. Compatible with wire reels and box systems.
Mecaspin wire sorter: automated sorting excellence.
- AUTOMATION 90%
- CADENCE 80%
- Modularity 80%
Features & Technical Specifications
Automatic selection of one or more cables to be wired in the sheath.
Propulsion of the selected cable in the sheath pre-wiring machine (MS04 – MS03 – MS02)
Machine interface control
Can be configured with wire feeders and electrical boxes
Holds up to 24 types of wire
Dimensions 70 x 70 x 168 cm
Equipment connectable to all pre-threaders
Up to 2 connectable thread sorters per pre-threader, i.e. 48 threads!
Description of a cycle :
- The production file indicates a change of wires for the forthcoming sheath.
- The spinning bonnet on the spinning machine opens automatically and ejects the wires.
- The central unit of the spinning machine indicates the wires to be selected for the next sheath.

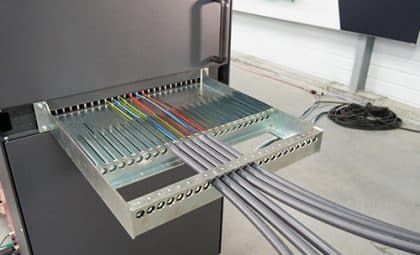

- The wire sorter recovers the electrical wires ejected by the spinning machine.
- The wire sorter ejects the wires selected for the sheath to be produced.
- The operator picks up the wires offered by the wire sorter and inserts them into the wiring system.
For subsequent cycles, the sorter switches to “wire passing” mode and does not intervene during the spinning times. As well as saving time when changing wires, the wire sorter offers real quality gains, ensuring that the operator always inserts the right wires into the sheath. Selection errors are therefore eliminated.
